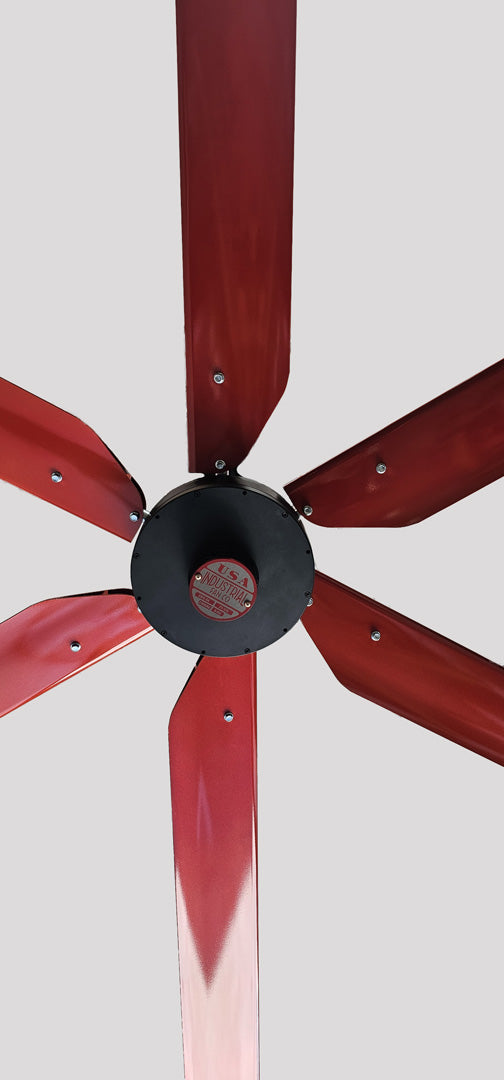

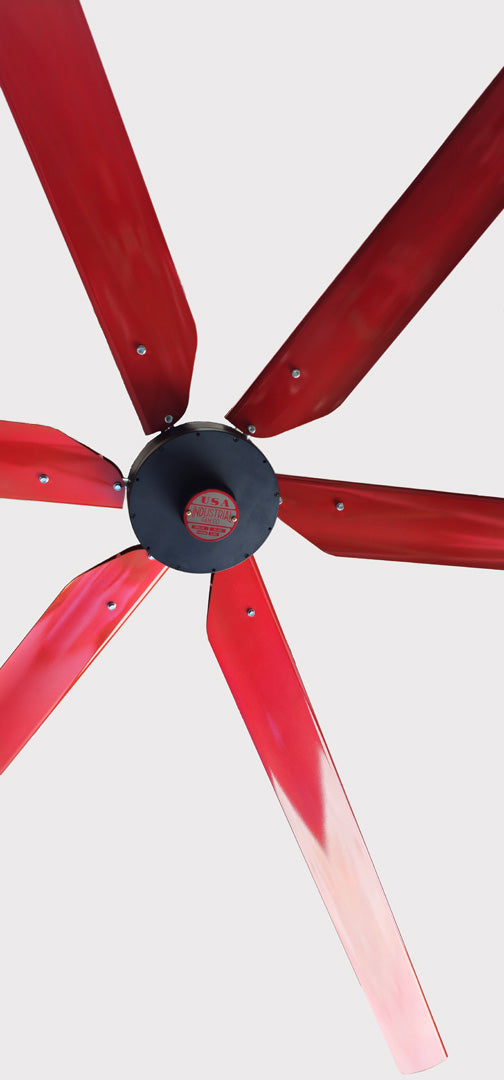

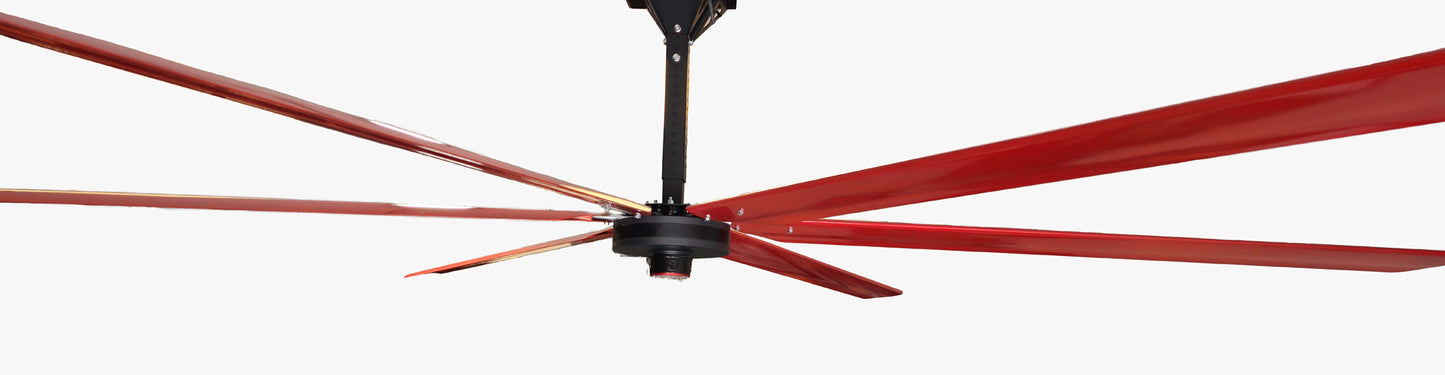

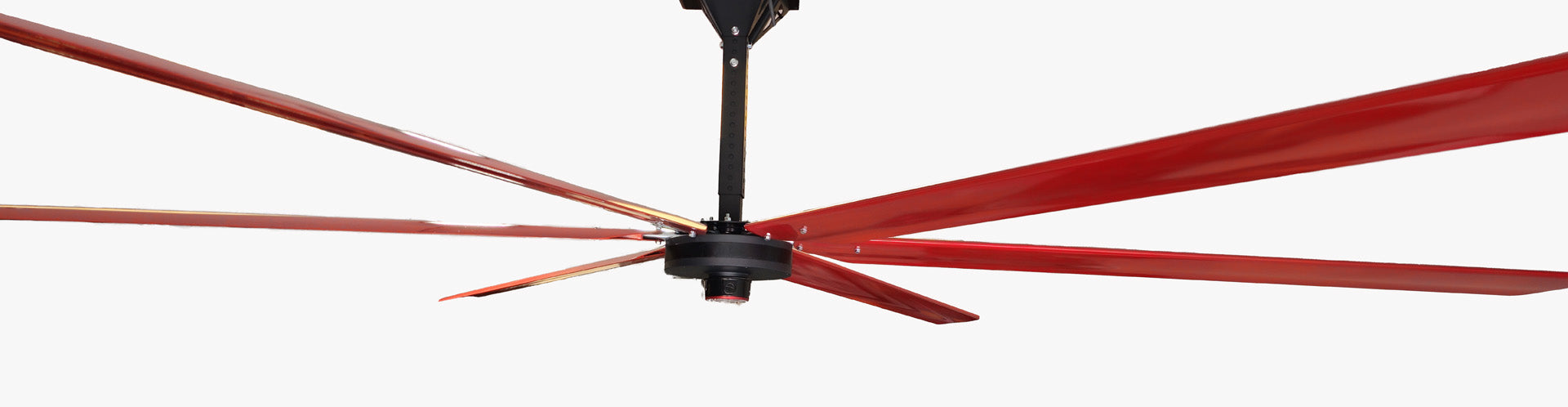

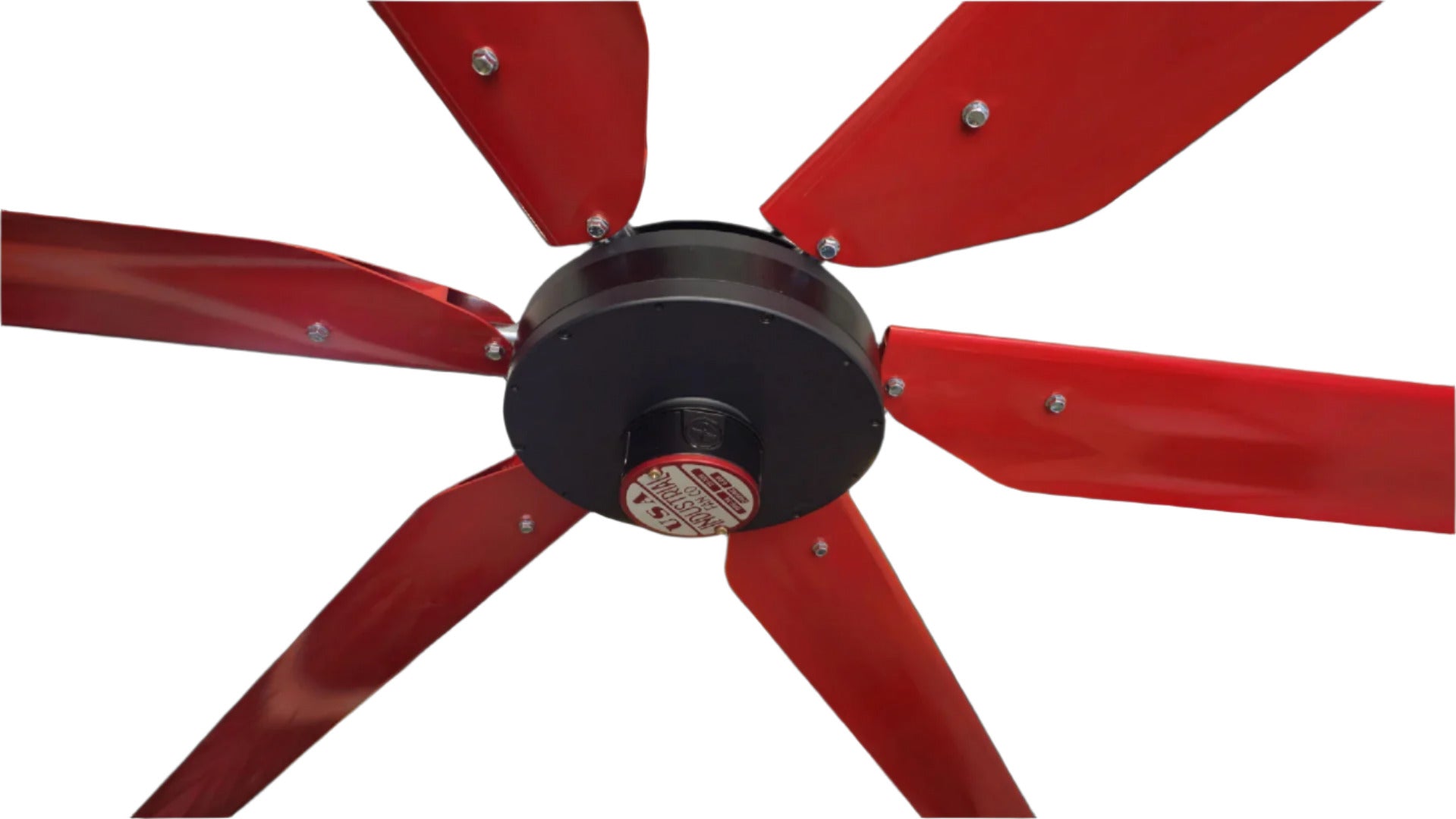

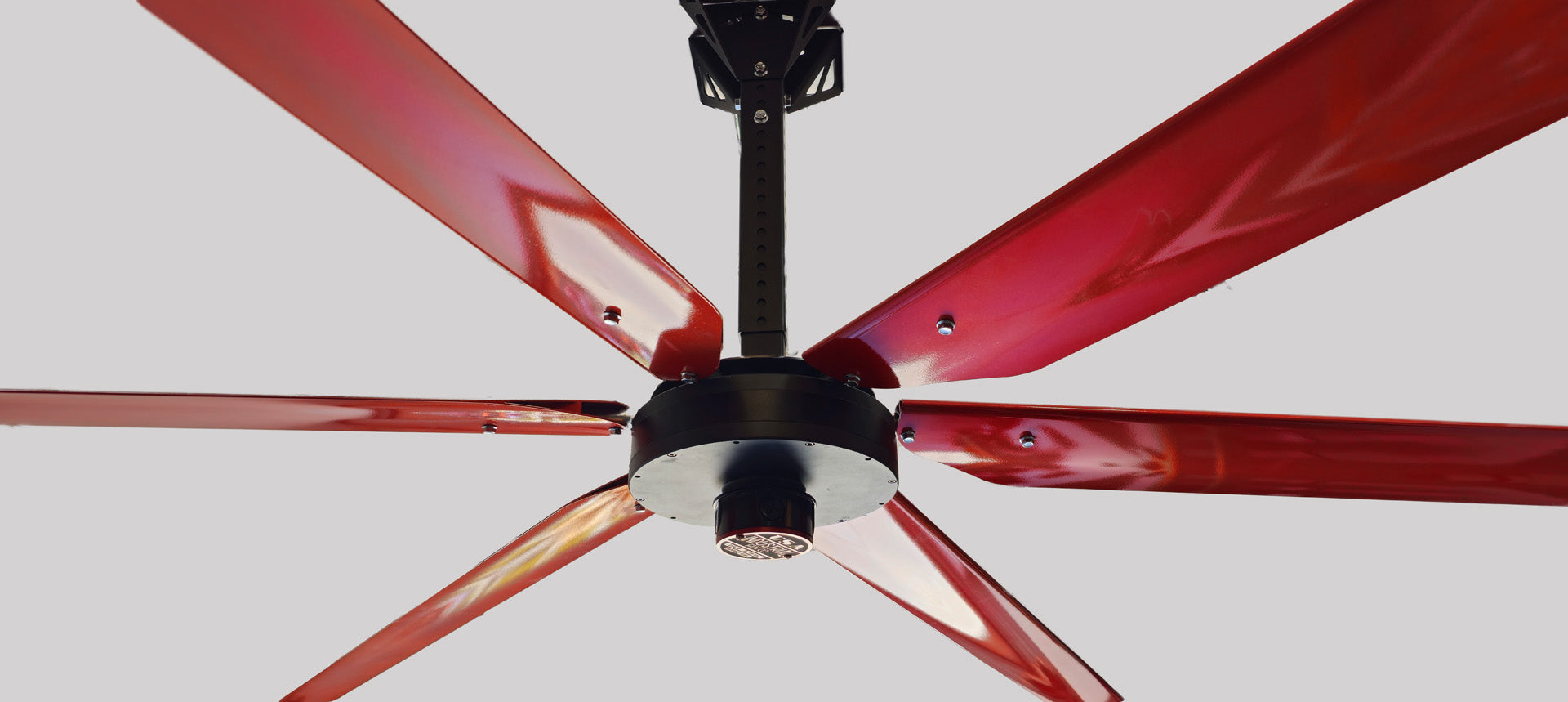

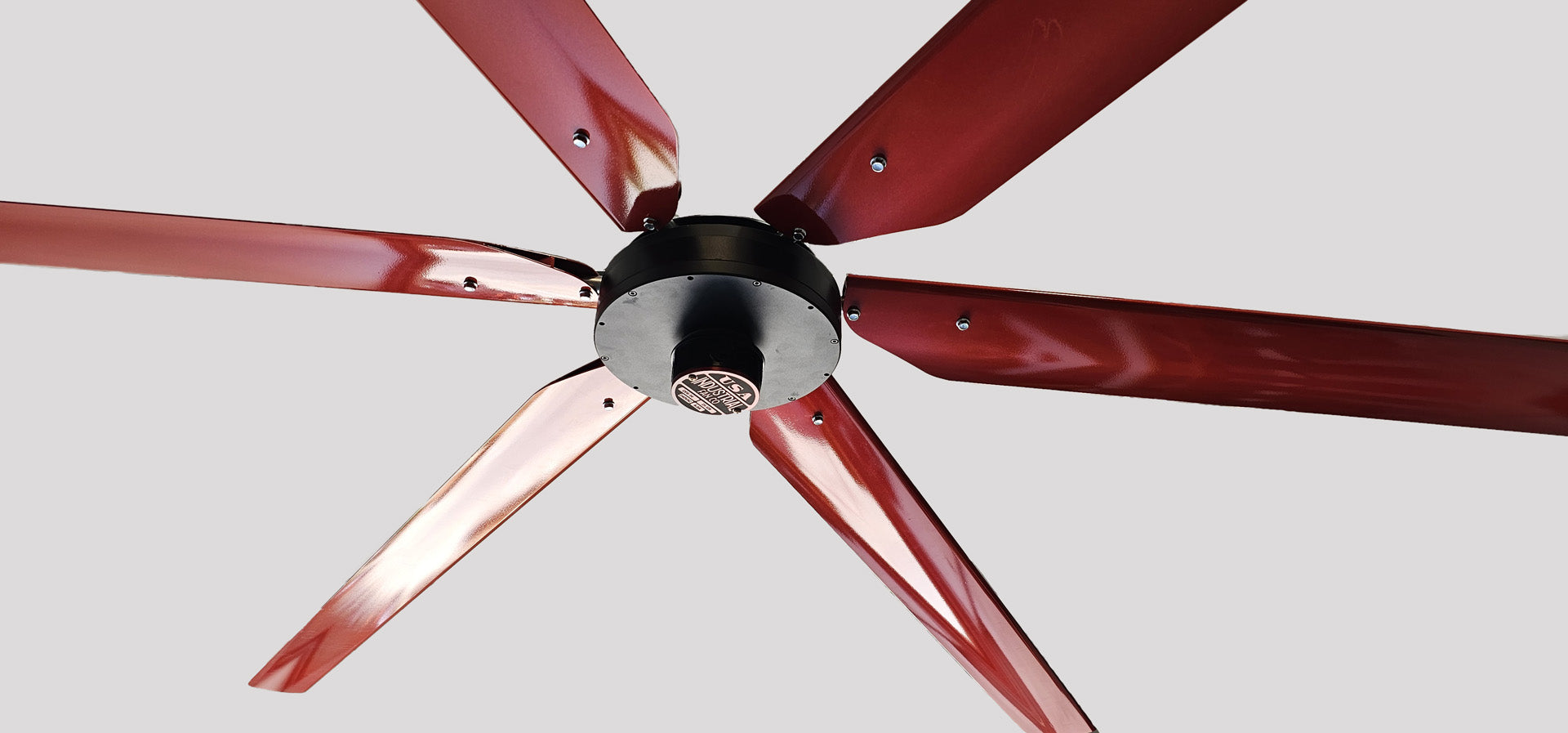

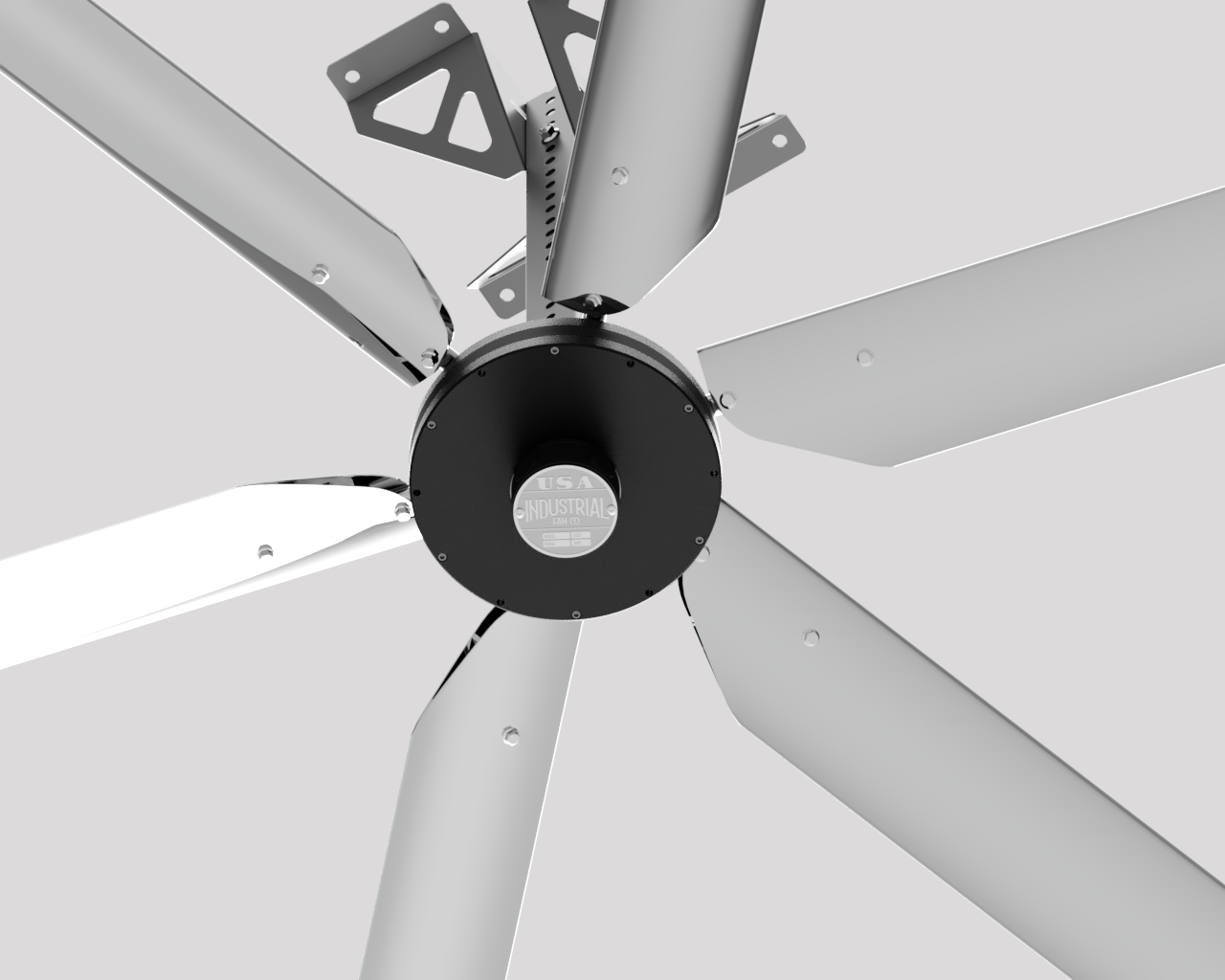

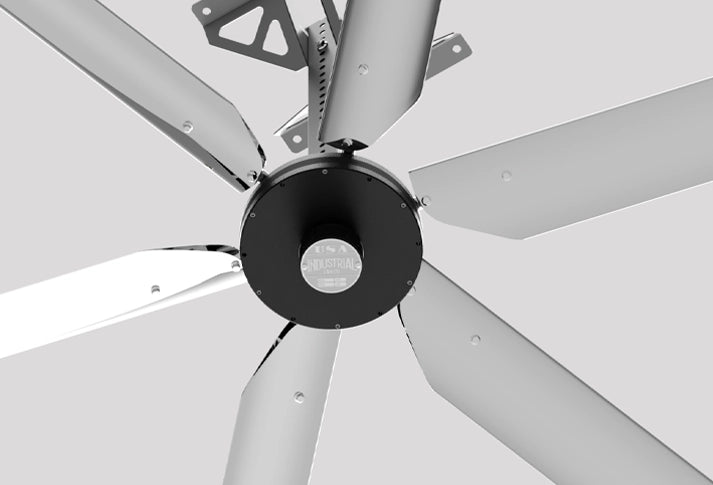

DF6 is our high-output industrial, HVLS ceiling fan with 1HP (750W) or direct-drive motor power. The DF6 uses a 14ft. 6-Blade rotor for maximum airflow designed to cover industrial and commercial spaces up to 5000 sq. ft.
This fan is shipped mostly assembled (except blades) and it is a lightweight, and easy to install using our telescoping extension tube and no guy-wires.
Our industrial direct-drive powerunit will handle the harshest environments, operating continuously for many years.
FEATURES
Maintenance free - One moving part, no gears, no belts.

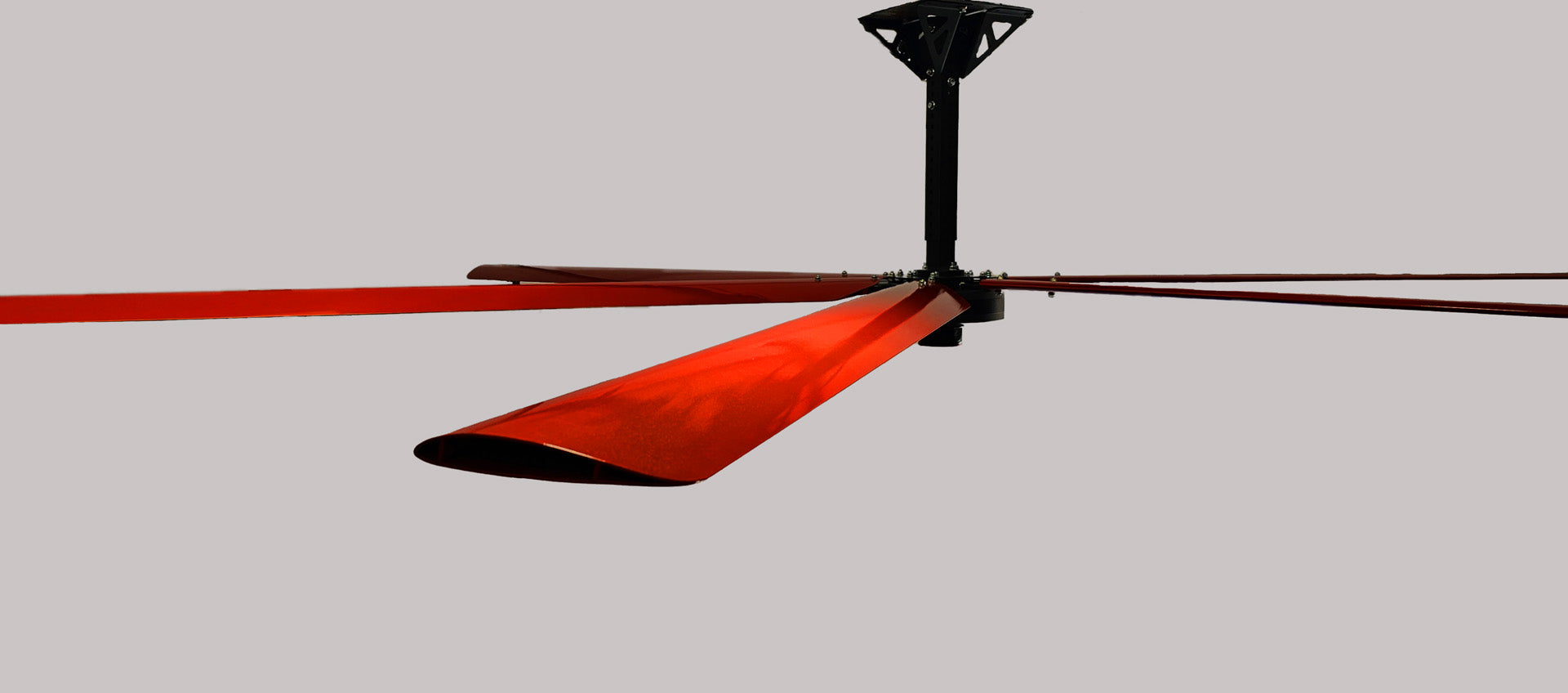

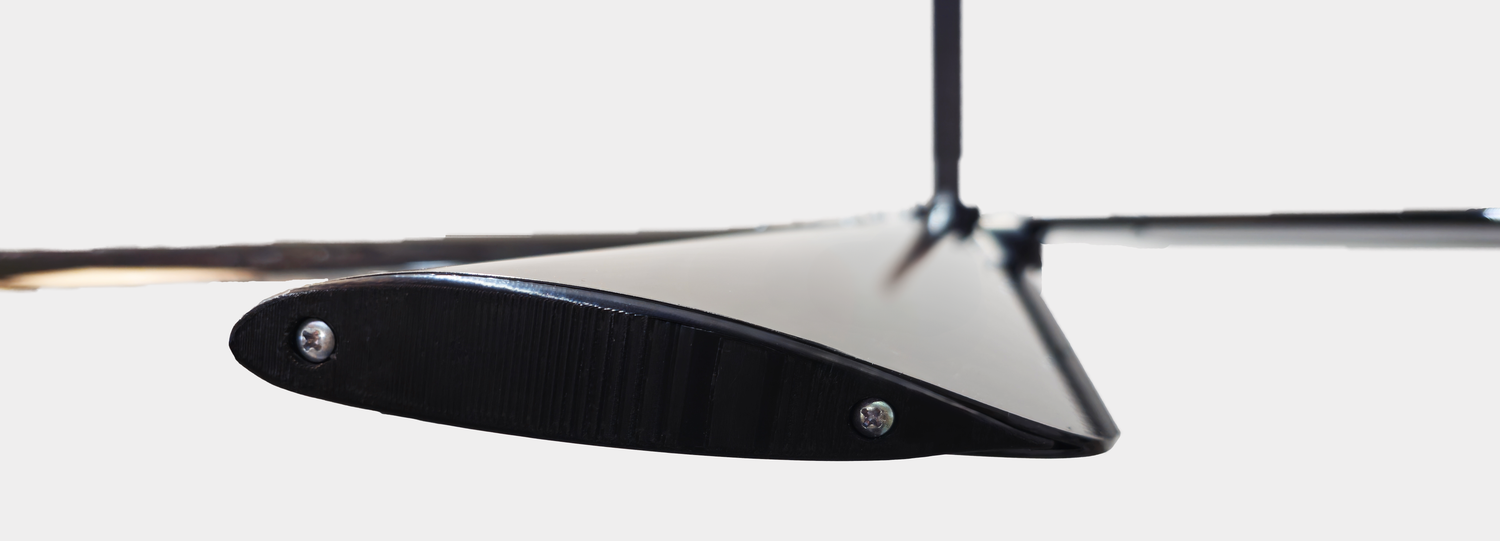

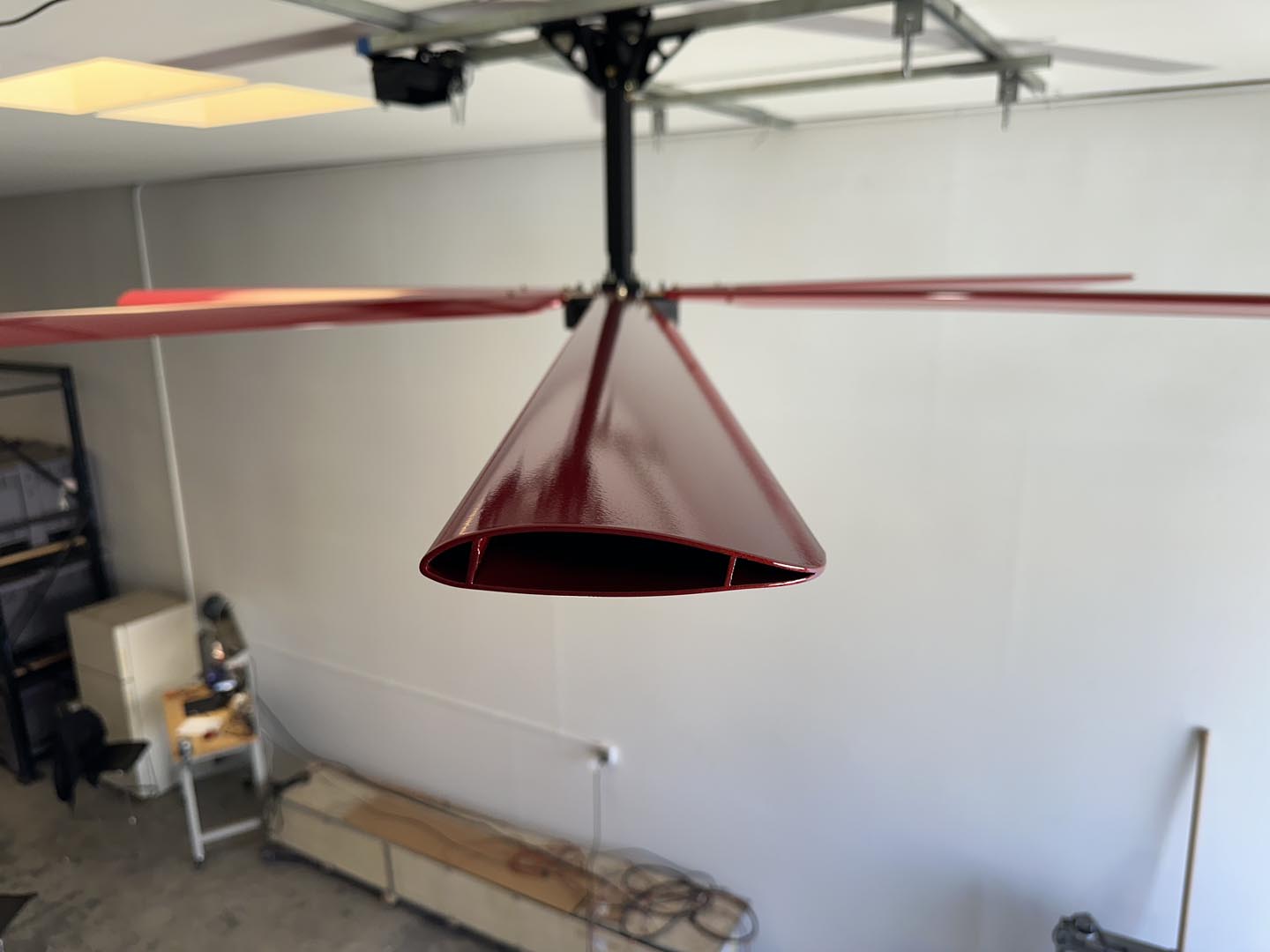

Precision CNC machined, anodized aluminum airfoils for industrial airflow

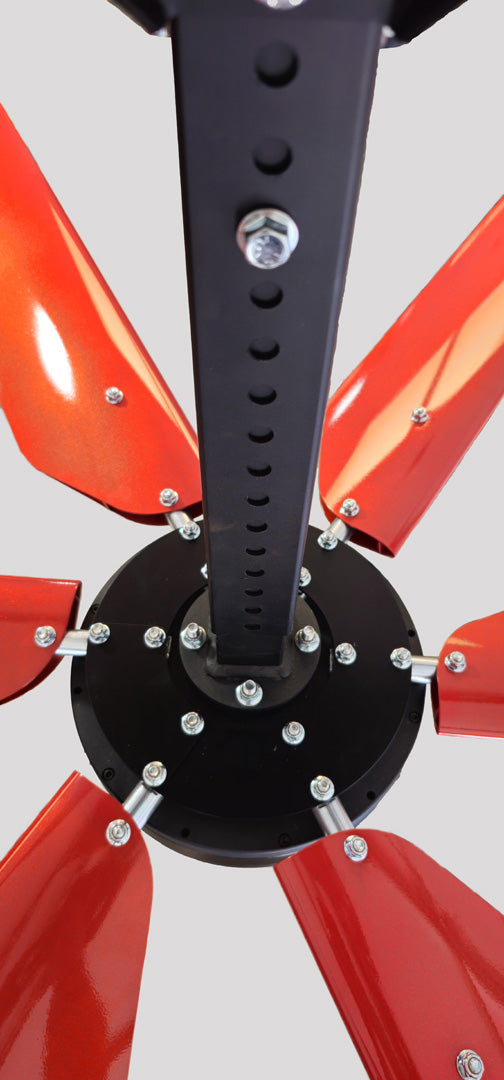

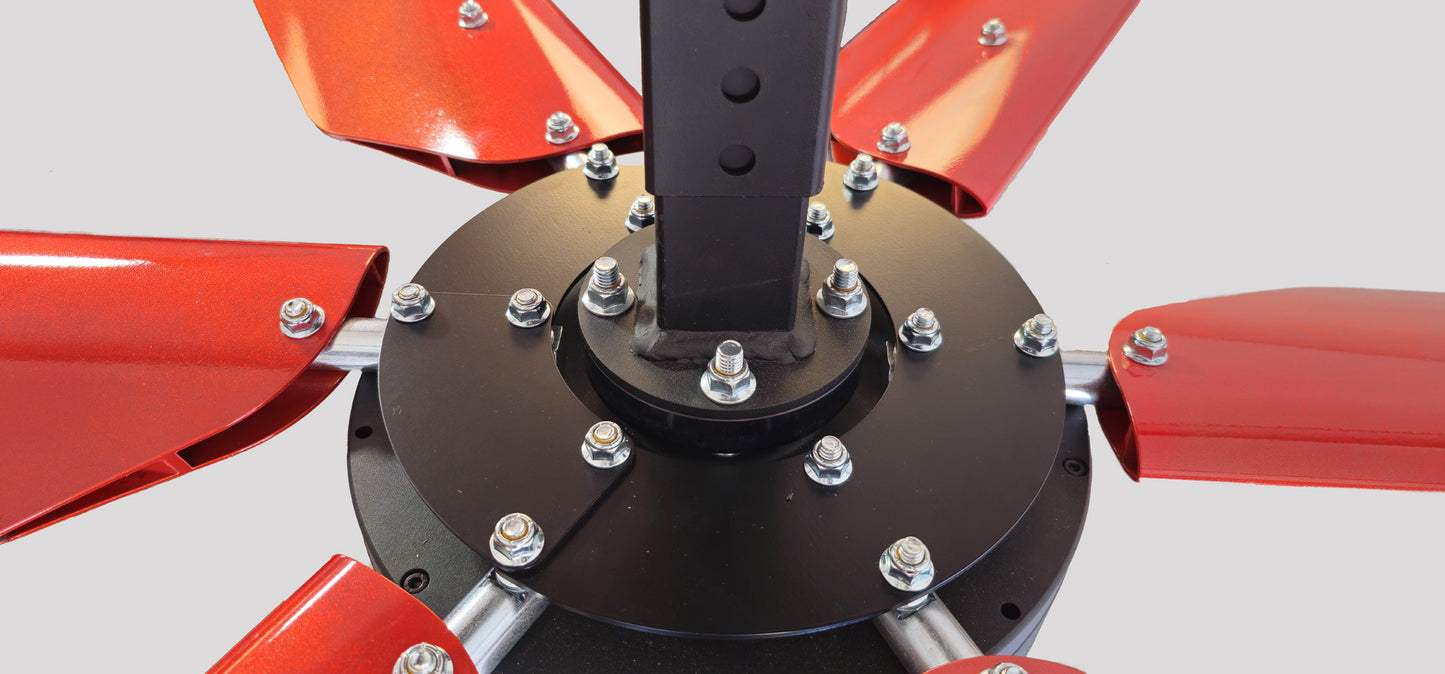

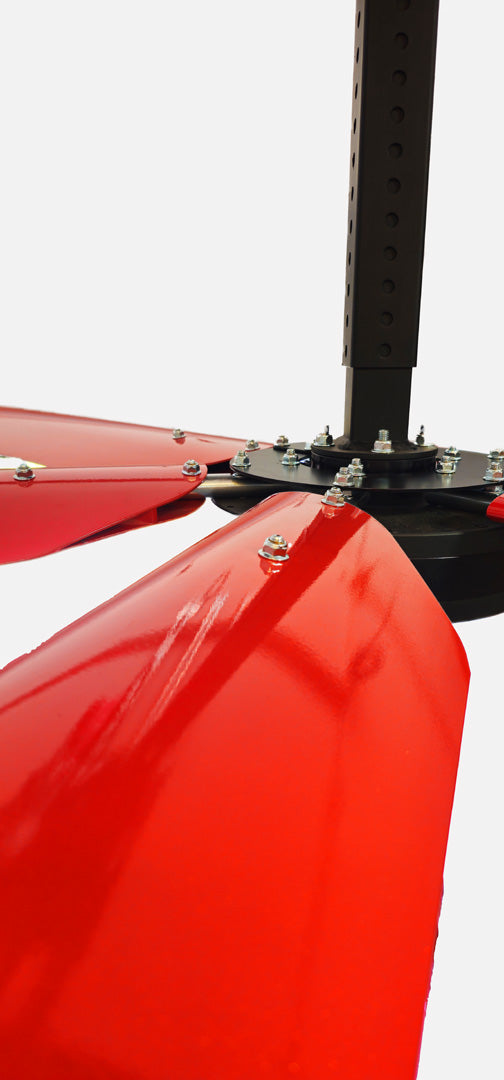

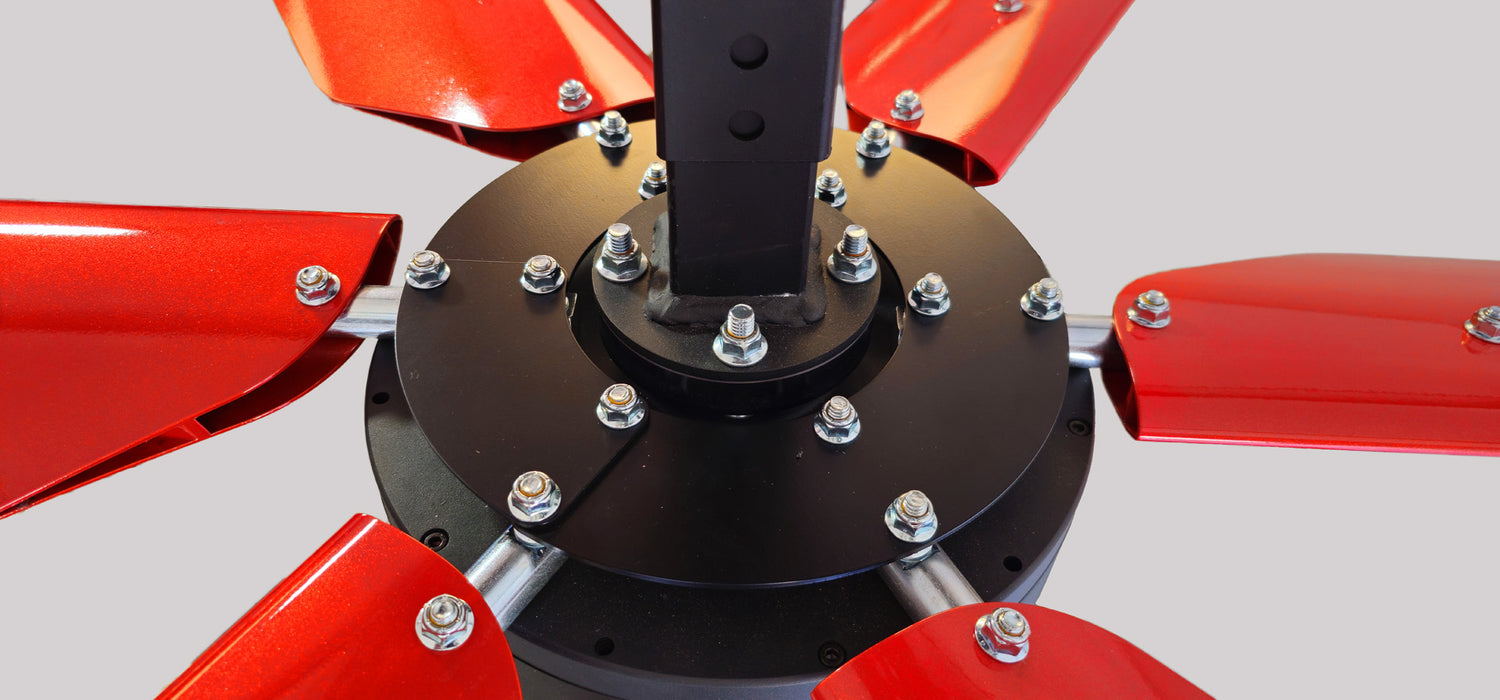

Integrated blade attachment system eliminates multiple components improving safety, reliability, and value.

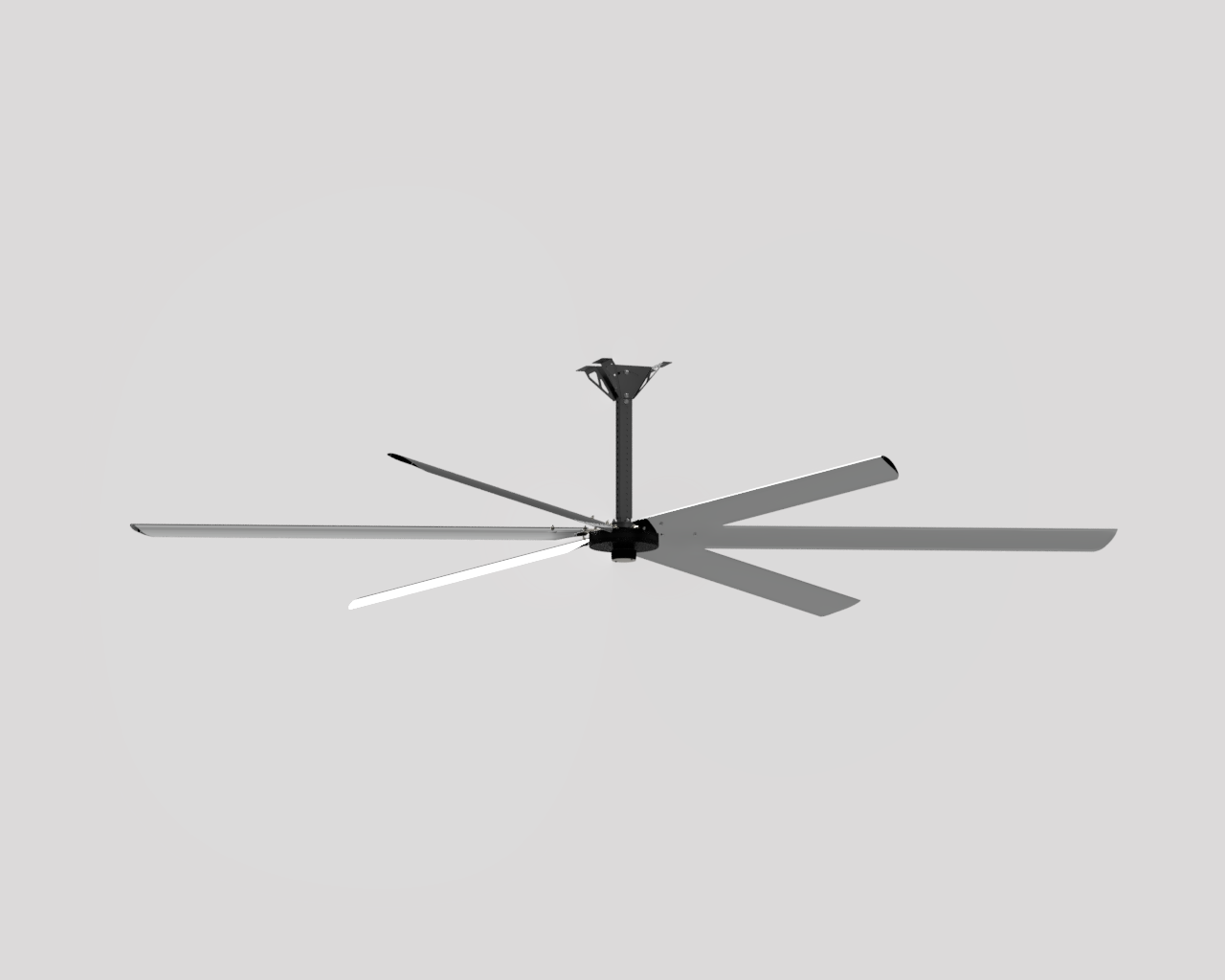

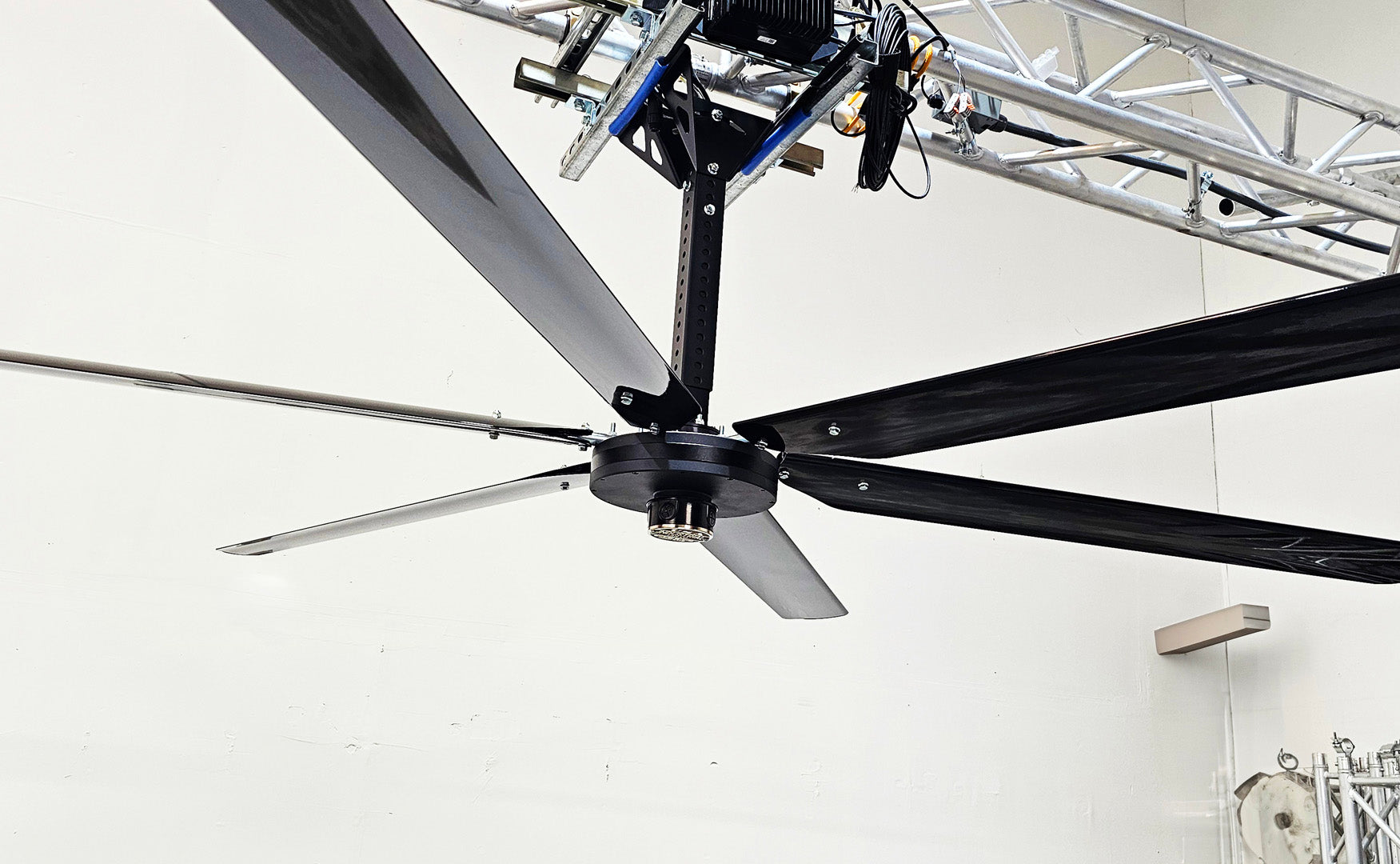

The pivoting and telescoping mount system, and lightweight construction help make DF6 the easiest industrial fan to install.
220V appliance plug - no electrician required*
*assumes 220V receptacle with minimum of 3.5A capacity
USA Made from domestic and internationally sourced parts
|
FEATURE
|
DF-6 SPECIFICATION
|
|
|
| Blade Diameter |
14 ft. aluminum airfoils |
|
Max Supply Voltage
|
220V 1Ø @ 3.5A
|
|
Product Weight
|
120 lbs
|
|
Max Output Power
|
1HP (750) W @220V
|
|
Max Speed
|
105 RPM
|
|
Motor
|
Direct-Drive Permanent Magnet
|
|
Control
|
Variable Speed Control
|
|
Construction
|
Steel/Aluminum
|
|
Mount
|
Adjustable extension-tube 22” - 44”
Adjustable Roof-Pitch
|
